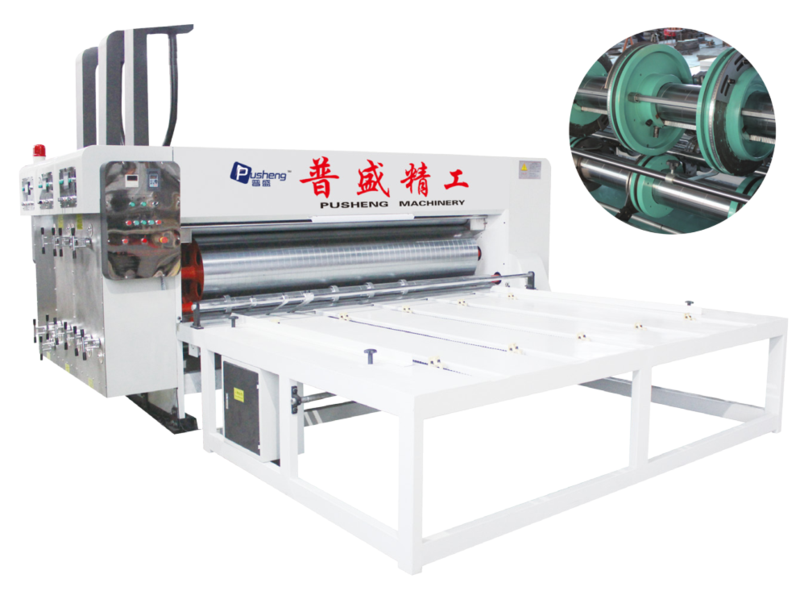

主要特点

◆ 整台机器按照高要求，可靠性功能而设计制造，整机操作人性化设计，能在短时间内进行设定、修正、执行、更换、并以精确数据显示。

◆所有传动辊材质均为优质钢，镀硬铬，表面研磨。

◆传动齿轮采用优质合金钢，经热处理，研磨而成。

◆主要传动轴采用免键连接， 减少连接间隙，保证印刷套印精度。

◆机油自动平衡装置，保持各单元油面平衡。

◆链接式进纸方式。

◆网辊：可选用金属网辊或陶瓷网纹辊，网辊线数可根据用户要求选择。

开槽部

◆预压轮装置；手动式开槽，压线、预压一次完成。

◆手动调整纸箱的长、宽、高及折叠部分，数字显示。

◆压线轮间隙手动调整，刻度盘显示调整数值。

◆开槽刀厚度 7mm, 合金钢材质，锯齿形热处理齿形研磨，刀刃锋利，精密度高。

◆开槽相位采用电脑电动数值式 360 度调整。

◆追加手提孔模座。

◆在开槽部装有连锁控制开关，实现急停。

The main features

◆ The whole machine is designed and manufactured in accordance with high

requirements and reliability functions. The machine is humanized designed for

operation. It can be set, modified, executed, replaced and displayed with accurate data

in a short time.

◆ All drive rollers are made of high quality steel, plated with hard chrome and ground

on the surface.

◆ Transmission gear adopts high quality alloy steel, after heat treatment and grinding.

◆ The main drive shaft adopts key-free connection to reduce the connection gap and

ensure the accuracy of printing overprint.

◆ Automatic oil balancing device, keep the oil level balance of each unit.

◆ Link feed method.

◆ Screen roller: metal screen roller or ceramic roller can be selected. The number of

lines of screen roller can be selected according to user requirements.

Slot department

◆ Prepressure wheel device; Manual slotting, line pressing and prepressing are

completed at one time.

◆ Manually adjust the length, width, height and folding parts of the carton for digital

display.

◆ The clearance of the press wheel is adjusted manually, and the dial displays the

adjustment value.

◆ The slotting knife thickness is 7mm, alloy steel material, serrated heat treatment

tooth grinding, sharp edge, high precision.

◆ The slotting phase is adjusted 360 ° by computerized numerical control.

◆ Add hand hole die base.

◆ Interlock control switch is installed in the slotting part to realize emergency stop.

主要参数 The main parameters
